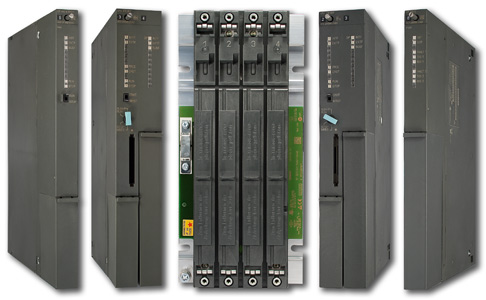

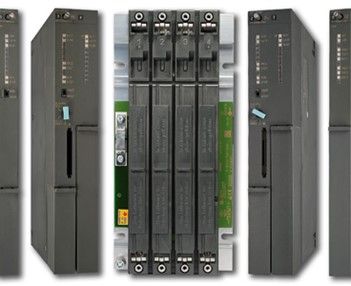

The power of the S7-400 is scalable thanks to a graded range of CPUs; the capacity for I/O is almost unlimited.
The power reserves of the CPUs enable new functions to be integrated without further hardware investment, e.g. processing of quality data, user-friendly diagnosis, integration into higher-level MES solutions or high-speed communication via bus systems.
The S7-400 can be structured in a modular way; there is a widely varied range of modules available both for centralized configurations and distributed structures. This results in very cost-effective spare parts handling.
The configuration of the distributed I/O of the S7-400 can be modified during operation (Configuration in Run). In addition signal modules can be removed and inserted while live (hot swapping). This makes it very easy to expand the system or replace modules in the event of a fault.
The storage of the complete project data including symbols and comments on the CPU simplifies service and maintenance calls.
Safety engineering and standard automation can be integrated into a single S7-400 controller; plant availability can be increased through the redundant structure of the S7-400.
Many of the S7-400 components are also available in a SIPLUS version for external environmental conditions, e.g. extended temperature range (-25?+60°C) and for use where there is aggressive atmosphere/condensation.
The high-speed backplane bus of S7-400 ensures efficient linking of central I/O modules
| PART NUMBER | DESCRIPTION |
| 6ES7412-1XJ05-0AB0 | SIMATIC S7-400, CPU 412-1CENTRAL PROCESSING UNIT WITH:288 KB WORKING MEMORY,(144 KB CODE, 144 KB DATA),INTERFACE MPI/DP 12 MBIT/S |
| 6ES7412-2XJ05-0AB0 | SIMATIC S7-400, CPU 412-2CENTRAL PROCESSING UNIT WITH:512 KB WORKING MEMORY,(256 KB CODE, 256 KB DATA),1. INTERFACE MPI/DP 12 MBIT/S,2. INTERFACE PROFIBUS DP |
| 6ES7412-5HK06-0AB0 | SIMATIC S7-400H, CPU 412-5H,CENTRAL UNIT FORS7-400H AND S7-400F/FH,5 INTERFACES:1X MPI/DP, 1X DP, 1X PN AND2 FOR SYNC MODULES1 MB MEMORY(512 KB DATA/512 KB CODE) |
| 6ES7414-2XK05-0AB0 | SIMATIC S7-400, CPU 414-2CENTRAL PROCESSING UNIT WITH:1 MB WORKING MEMORY,(0,5 MB CODE, 0,5 MB DATA),1. INTERFACE MPI/DP 12 MBIT/S,2. INTERFACE PROFIBUS DP |
| 6ES7414-3EM06-0AB0 | SIMATIC S7-400, CPU 414-3 PN/DPCENTRAL PROCESSING UNIT WITH:4 MB WORKING MEMORY,(2 MB KB CODE, 2 MB DATA),INTERFACES:1. IF MPI/DP 12 MBIT/S (X1),2. IF ETHERNET/PROFINET (X5),3. IF IF964-DP PLUGABLE (IF1) |
| 6ES7414-3FM06-0AB0 | SIMATIC S7-400, CPU414F-3 PN/DPCENTRAL PROCESSING UNIT WITH:4 MB WORKING MEMORY,(2 MB KB CODE, 2 MB DATA),INTERFACES:1. IF MPI/DP 12 MBIT/S (X1),2. IF ETHERNET/PROFINET (X5),3. IF IF964-DP PLUGABLE (IF1) |
| 6ES7414-3XM05-0AB0 | SIMATIC S7-400, CPU 414-3CENTRAL PROCESSING UNIT WITH:2.8 MB WORKING MEMORY,(1.4 MB CODE, 1.4 MB DATA),1. INTERFACE MPI/DP 12 MBIT/S,2. INTERFACE PROFIBUS DP,3. IF IFM MODULES PLUGGABLE |
| 6ES7414-3HM06-0AB0 | SIMATIC S7-400H, CPU 414-5H,CENTRAL UNIT FORS7-400H AND S7-400F/FH,5 INTERFACES:1X MPI/DP, 1X DP, 1X PN AND2 FOR SYNC MODULES4 MB MEMORY(2 MB DATA/2 MB CODE) |
| 6ES7416-1XJ02-0AB0 | SIMATIC S7-400, CPU 416F-2,CENTRAL PROCESSING UNIT WITH:5.6 MB WORKING MEMORY,(2.8 MB CODE, 2.8 MB DATA),1. INTERFACE MPI/DP 12 MBIT/S,2. INTERFACE PROFIBUS DPAPPLICABLE W. SOFTWARE PACKAGEDISTRIBUTED SAFETY >= V5.2+SP2 |
| 6ES7416-2XN05-0AB0 | SIMATIC S7-400, CPU 416-2CENTRAL PROCESSING UNIT WITH:5.6 MB WORKING MEMORY,(2.8 MB CODE, 2.8 MB DATA),1. INTERFACE MPI/DP 12 MBIT/S,2. INTERFACE PROFIBUS DP |
| 6ES7416-3FS06-0AB0 | SIMATIC S7-400, CPU416F-3 PN/DPCENTRAL PROCESSING UNIT WITH:16 MB WORKING MEMORY,(8 MB KB CODE, 8 MB DATA), INTERFACE:1. IF MPI/DP 12 MBIT/S (X1),2. IF ETHERNET/PROFINET (X5),3. IF IF964-DP PLUGABLE (IF1) |
| 6ES7416-3XR05-0AB0 | SIMATIC S7-400, CPU 416-3CENTRAL PROCESSING UNIT WITH:11.2 MB WORKING MEMORY,(5.6 MB CODE, 5.6 MB DATA),1. INTERFACE MPI/DP 12 MBIT/S,2. INTERFACE PROFIBUS DP,3. IF IFM MODULES PLUGGABLE |
| 6ES7416-3ES06-0AB0 | SIMATIC S7-400, CPU 416-3 PN/DPCENTRAL PROCESSING UNIT WITH:16 MB WORKING MEMORY,(8 MB KB CODE, 8 MB DATA),INTERFACES:1. IF MPI/DP 12 MBIT/S (X1),2. IF ETHERNET/PROFINET (X5),3. IF IF964-DP PLUGABLE (IF1) |
| 6ES7416-5HS06-0AB0 | SIMATIC S7-400H, CPU 416-5H,CENTRAL UNIT FORS7-400H AND S7-400F/FH,5 INTERFACES:1X MPI/DP, 1X DP, 1X PN AND2 FOR SYNC MODULES16 MB MEMORY(10 MB DATA/6 MB CODE) |
| 6ES7417-1HT14-0AB0 | SIMATIC S7-400H, CPU 417-5H,CENTRAL UNIT FORS7-400H AND S7-400F/FH,5 INTERFACES:1X MPI/DP, 1X DP, 1X PN AND2 FOR SYNC MODULES32 MB MEMORY(16 MB DATA/16 MB CODE) |
| 6ES7417-4XT05-0AB0 | SIMATIC S7-400, CPU 417-4CENTRAL PROCESSING UNIT WITH:30 MB WORKING MEMORY,(15 MB CODE; 15 MB DATA)1. INTERFACE MPI 12 MBIT/S,2. INTERFACE PROFIBUS DP,3./4. IF IFM MODULES PLUGGABLE |
| 6ES7964-2AA04-0AB0 | SIMATIC S7, IF964-DPINTERFACE MODULE DP MASTERFOR S7-400 |
| 6ES7952-0AF00-0AA0 | SIMATIC S7, RAM MEMORY CARDFOR S7-400, LONG VERSION,64 KBYTES |
| 6ES7952-1AH00-0AA0 | SIMATIC S7, RAM MEMORY CARDFOR S7-400, LONG VERSION,256 KBYTES |
| 6ES7952-1AK00-0AA0 | SIMATIC S7, RAM MEMORY CARDFOR S7-400, LONG VERSION,1 MBYTE |
| 6ES7952-1AL00-0AA0 | SIMATIC S7, RAM MEMORY CARDFOR S7-400, LONG VERSION,2 MBYTES |
| 6ES7952-1AM00-0AA0 | SIMATIC S7, RAM MEMORY CARDFOR S7-400, LONG VERSION,4 MBYTES |
| 6ES7952-1AP00-0AA0 | SIMATIC S7, RAM MEMORY CARDFOR S7-400, LONG VERSION,8 MBYTES |
| 6ES7952-1AS00-0AA0 | SIMATIC S7, RAM MEMORY CARDFOR S7-400, LONG VERSION16 MBYTES |
| 6ES7952-1AY00-0AA0 | SIMATIC S7, RAM MEMORY CARDFOR S7-400, LONG VERSION64 MBYTES |
| 6ES7952-0KF00-0AA0 | SIMATIC S7, MEMORY CARDFOR S7-400, LONG VERSION,5V FLASH-EPROM, 64 KBYTES |
| 6ES7952-0KH00-0AA0 | SIMATIC S7, MEMORY CARDFOR S7-400, LONG VERSION,5V FLASH-EPROM, 256 KBYTES |
| 6ES7952-1KK00-0AA0 | SIMATIC S7, MEMORY CARDFOR S7-400, LONG VERSION,5V FLASH-EPROM, 1 MBYTE |
| 6ES7952-1KL00-0AA0 | SIMATIC S7, MEMORY CARDFOR S7-400, LONG VERSION,5V FLASH-EPROM, 2 MBYTES |
| 6ES7952-1KM00-0AA0 | SIMATIC S7, MEMORY CARDFOR S7-400, LONG VERSION,5V FLASH-EPROM, 4 MBYTES |
| 6ES7952-1KP00-0AA0 | SIMATIC S7, MEMORY CARDFOR S7-400, LONG VERSION,5V FLASH-EPROM, 8 MBYTES |
| 6ES7952-1KS00-0AA0 | SIMATIC S7, MEMORY CARDFOR S7-400, LONG VERSION,5V FLASH-EPROM, 16 MBYTES |
| 6ES7952-1KT00-0AA0 | SIMATIC S7, MEMORY CARDFOR S7-400, LONG VERSION,5V FLASH EPROM, 32 MBYTES |
| 6ES7952-1KY00-0AA0 | SIMATIC S7, MEMORY CARDFOR S7-400, LONG VERSION,5V FLASH EPROM, 64 MBYTES |
| 6ES7421-1BL01-0AA0 | SIMATIC S7-400, SM 421DIGITAL INPUT MODULE,OPTIC. ISOLATED, 32 DI, 24V DC |
| 6ES7421-1EL00-0AA0 | SIMATIC S7-400, SM 421DIGITAL INPUT MODULE,FLOATING, 32 DI, 120V DC/AC |
| 6ES7421-1FH20-0AA0 | SIMATIC S7-400, DIG.INPUT MOD.SM 421, OPTIC. ISOLATED,16 DI, 120/230V UCINPUTS PER IEC1131-2 TYPE 2 |
| 6ES7421-7BH01-0AB0 | SIMATIC S7-400, DIGITAL INPUTSM 421, GALVANICALLY ISOLATED,16 DI, 24V DC WITH0.05 MS INPUT DELAY,ALARM, DIAGNOSTICS |
| 6ES7421-7DH00-0AB0 | SIMATIC S7-400, SM 421DIGITAL INPUT MODULE,OPTIC. ISOLATED, 16 DI,24 - 60V UC, ALARM, DIAGNOSTICS |
| 6ES7422-1BH11-0AA0 | SIMATIC S7-400, SM 422DIGITAL OUTPUT MODULE,OPTIC. ISOLATED, 16 DO,24V DC, 2A |
| 6ES7422-1BL00-0AA0 | SIMATIC S7-400, SM 422DIGITAL OUTPUT MODULE,OPTIC. ISOLATED, 32 DO,24V DC, 0.5A |
| 6ES7422-7BL00-0AB0 | SIMATIC S7-400, DIG.OUTPUT MOD.SM 422, OPTIC. ISOLATED,32 DO, 24V DC, 0.5A WITH0,15 MS OUTPUT DELAY,DIAGNOSTICS |
| 6ES7422-1FH00-0AA0 | SIMATIC S7-400, SM 422DIGITAL OUTPUT MODULE,OPTIC. ISOLATED, 16 DO,120/230V AC, 2A |
| 6ES7422-1HH00-0AA0 | SIMATIC S7-400, SM 422DIGITAL OUTPUT MODULE,OPTIC. ISOLATED, 16 DO,5..230V AC, 5A RELAY |
| 6ES7431-0HH00-0AB0 | SIMATIC S7-400, ANALOG INPUTSM 431, NON-ISOLATED16 AI, RESOLUTION 13 BITS,+/-10V, +/-20MA, 4 - 20MA20 MS MODULE UPDATE |
| 6ES7431-1KF00-0AB0 | SIMATIC S7-400, SM 431ANALOG INPUT MODULEOPTIC. ISOLATED, 8 AI,13 BIT RESOLUTION, U/I/RESIST. |
| 6ES7431-1KF10-0AB0 | SIMATIC S7-400, SM 431ANALOG INPUT MODULEOPTIC. ISOLATED, 8 AI,14 BIT RESOLUTION, U/I/RESIST./THERMOEL/PT100 |
| 6ES7431-1KF20-0AB0 | SIMATIC S7-400, SM 431ANALOG INPUT MODULEOPTIC. ISOLATED, 8 AI,14 BIT RESOLUTION, U/I/RESIST.0.416 MS SCAN TIME |
| 6ES7431-7QH00-0AB0 | SIMATIC S7-400, SM 431ANALOG INPUT MODULEOPTIC. ISOLATED, 16 AI,16 BIT RESOLUTION, U/I/RESIST./THERMOEL./PT100,ALARM,DIAGNOST. |
| 6ES7431-7KF00-0AB0 | SIMATIC S7-400, ANALOG INPUTSM 431, 8AI; 16 BIT RESOLUTION,U/I/THERMOEL., OPTIC. ISOLATEDW. 1 POINT PER COMMON, DIAGN.,ALARM, 20 MS MODULE UPDATE |
| 6ES7431-7KF10-0AB0 | SIMATIC S7-400, ANALOG INPUTSM 431, 8AI; 16 BIT RESOLUTION,RESIST./PT100/NI100OPTIC. ISOLATED, DIAGNOSTIC,ALARM, 20 MS MODULE UPDATE |
| 6ES7432-1HF00-0AB0 | SIMATIC S7-400, SM 432ANALOG OUTPUT MODULEOPTIC. ISOLATED, 8 AO,13 BIT RESOLUTION, U/I |
| 6ES7492-1AL00-0AA0 | SIMATIC S7-400, FRONT CONNECTORFOR SIGNAL MODULES WITHSCREW-TYPE CONTACT, 48-POLE |
| 6ES7492-1BL00-0AA0 | SIMATIC S7-400, FRONT CONNECTORFOR SIGNAL MODULES WITHSPRING CONTACT, 48-POLE |
| 6ES7492-1CL00-0AA0 | SIMATIC S7-400, FRONT CONNECTORFOR SIGNAL MODULES, FORCRIMP SNAP-IN CONTACT, 48-POLE |
| 6GK7443-1EX30-0XE0 | SIMATIC NET CP 443-12 X 10/100 MBIT/S (IE SWITCH);RJ 45 PORTS;ISO; TCP; UDP; PROFINET-IOCONTROLLER; S7-COMMUNCATION;OPEN COMMUNICATION (SEND/RE-CEIVE); S7-ROUTING; IP-CONFIGU-RATION VIA DHCP/BLOCK;IP ACCESSS CONTROL LIST; TIME-SYNCHRONISATION; EXTENDEDWEB-DIAGNOSIS; FAST STARTUP;PROFIENERGY SUPPORT |
| 6GK7443-1EX30-0XE1 | SIMATIC NET CP 443-1(CONFORMAL COATING)2 X 10/100 MBIT/S (IE SWITCH);RJ 45 PORTS;ISO; TCP; UDP; PROFINET-IO CON-TROLLER; S7-COMMUNICATION;OPEN COMMUNICATION (SEND/RE-CEIVE); S7-ROUTING; IP-CONFIGU-RATION VIA DHCP/MODULE;IP ACCESSS CONTROL LIST; CLOCKSYNCHRONISATION; EXTENDEDWEB-DIAGNOSTICS; FAST STARTUP;PROFIENERGY SUPPORT |
| 6GK7443-1GX30-0XE0 | SIMATIC NET CP 443-1 ADVANCED1X 10/100/1000 MBIT/S;4 X 10/100 MBIT/S (IE SWITCH);RJ 45 PORTS;ISO; TCP; UDP; PROFINET-IO CON-TROLLER; S7-COMMUNCATION;OPEN COMMUNICATION (SEND/RE-CEIVE); S7-ROUTING; IP-KONFIGU-RATION VIA DHCP/BLOCK;IP ACCESSS CONTROL LIST; TIME-SYNCHRONISATION; EXTENDEDWEB-DIAGNOSIS; FAST STARTUP;PROFIENERGY SUPPORT;IP-ROUTING; FTP; WEB-SERVER;E-MAIL; PROFINET CBA, SECURITY |
| 6GK7443-5DX05-0XE0 | COMMUNICATION PROCESSOR CP443-5EXTENDED FOR CONNECT. OFSIMATIC S7-400TO PROFIBUS, DP, S5-COMPATIBLEPG/OP- AND S7-COMMUNICATION |
| 6GK7443-5DX05-0XE1 | COMMUNICATION PROCESSOR CP443-5EXTENDED (CONFORMAL COATING)FOR CONNECTION OFSIMATIC S7-400TO PROFIBUS, DP, S5-COMPATIBLEPG/OP- AND S7-COMMUNICATION |
| 6GK7443-5FX02-0XE1 | COMMUNICATIONPROCESSOR CP 443-5BASIC FOR CONNECTION OFSIMATIC S7-400TO PROFIBUS, FMS, S5 COMPATIBLEPG/OP AND S7 COMMUNICATION |
| 6ES7401-1DA01-0AA0 | SIMATIC S7-400, CR3 RACK,CENTRALIZED WITH 4 SLOTS |
| 6ES7400-1TA01-0AA0 | SIMATIC S7-400, UR1 RACK,CENTRALIZED AND DISTRIBUTEDWITH 18 SLOTS2 REDUNDANT PS PLUGGABLE |
| 6ES7400-1TA11-0AA0 | SIMATIC S7-400, UR1 RACK ALU,CENTRALIZED AND DISTRIBUTEDWITH 18 SLOTS,2 REDUNDANT PS PLUGGABLE |
| 6ES7400-1JA01-0AA0 | SIMATIC S7-400, UR2 RACK,CENTRALIZED AND DISTRIBUTEDWITH 9 SLOTS2 REDUNDANT PS PLUGGABLE |
| 6ES7400-1JA11-0AA0 | SIMATIC S7-400, UR2 RACK ALU,CENTRALIZED AND DISTRIBUTEDWITH 9 SLOTS,2 REDUNDANT PS PLUGGABLE |
| 6ES7401-2TA01-0AA0 | SIMATIC S7-400, CR2 RACK,CENTRALIZED,18 SLOTS,2 SEGMENTS2 REDUNDANT PS PLUGGABLE |
| 6ES7460-0AA01-0AB0 | SIMATIC S7-400, IM460-0TRANSMITTER INTERFACE MODULE,FOR CENTRALIZED CONNECTIONW/O PS TRANSMISSION WITH K BUS |
| 6ES7461-0AA01-0AA0 | SIMATIC S7-400, IM461-0RECEIVER INTERFACE MODULE,FOR CENTRALIZED CONNECTIONW/O PS TRANSMISSION, WITH K BUS |
| 6ES7460-1BA01-0AB0 | SIMATIC S7-400, IM460-1TRANSMITTER INTERFACE MODULE,FOR CENTRALIZED CONNECTIONWITH PS TRANSMISSION W/O K BUS |
| 6ES7461-1BA01-0AA0 | SIMATIC S7-400, IM461-1RECEIVER INTERFACE MODULEFOR CENTRALIZED CONNECTIONWITH PS TRANSMISSION, W/O K BUS |
| 6ES7460-3AA01-0AB0 | SIMATIC S7-400, IM460-3TRANSMITTER INTERFACE MODULE,FOR DISTRIBUTED CONNECTION UPTO 102 M, WITH K BUS |
| 6ES7468-1AH50-0AA0 | SIMATIC S7-400, IM CABLE WITHK BUS, 0.75 M |
| 6ES7468-1BB50-0AA0 | SIMATIC S7-400, IM CABLE WITHK BUS, 1.5 M |
| 6ES7468-1BF00-0AA0 | SIMATIC S7-400, IM CABLE WITHK BUS, 5 M |
| 6ES7407-0DA02-0AA0 | SIMATIC S7-400, POWERSUPPLYPS407: 4A, WIDERANGE,120/230V UC,5V DC/4A |
| 6ES7407-0KA02-0AA0 | SIMATIC S7-400, POWER SUPPLYPS407: 10A, WIDERANGE,120/230V UC, 5V DC/10A |
| 6ES7407-0KR02-0AA0 | SIMATIC S7-400, POWER SUPPLYPS407; 10A, WIDERANGE,120/230V UC, 5V DC/10A,FOR REDUNDANT USE |
| 6ES7407-0RA02-0AA0 | SIMATIC S7-400, POWER SUPPLYPS407, 20A, WIDERANGE,120/230V UC, 5V DC/20A |
| 6ES7971-0BA00 | SIMATIC S7-400, BACK-UP BATTERY3.6 V/2.3 AH FORPS 405 4A/10A/20A ANDPS 407 4A/10A/20A |
SIMATIC STEP 7.x
S7-400 finds successful application here:
· Automotive industry
· Standard mechanical equipment manufacture incl. custom mechanical equipment manufacture
· Warehousing systems
· Building engineering
· Steel industry
· Power generation and distribution
· Paper and printing industries
· Woodworking
· Textile manufacture
· Pharmaceuticals
· Food and beverages industries
· Process engineering, e.g. water and wastewater utilities
· Chemical industry and petrochemicals
