Thanks to their high processing speed, the CPUs enable short machine cycle times.

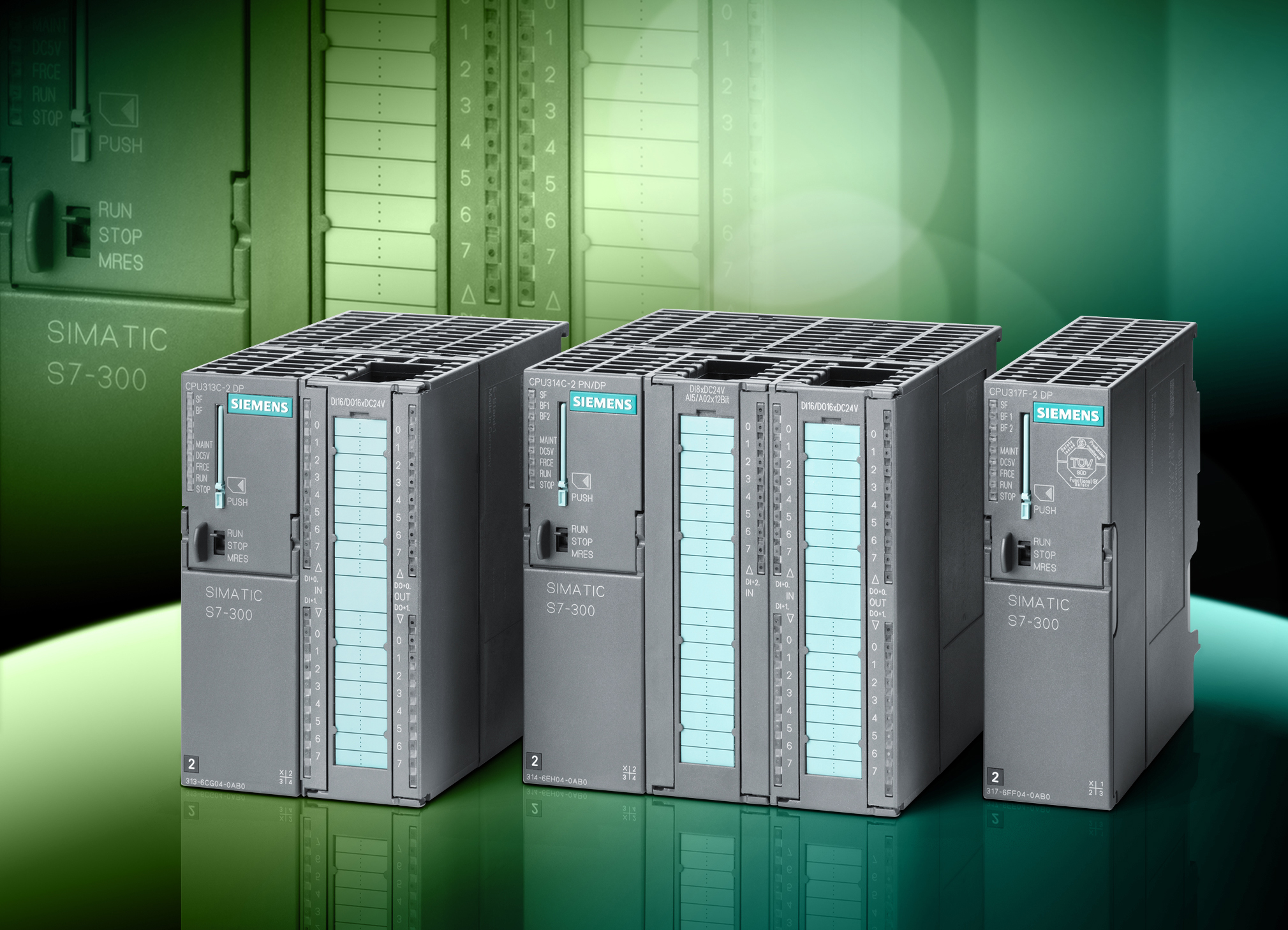

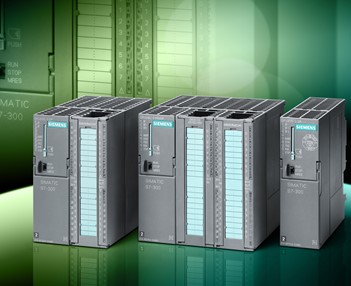

The S7-300's range of CPUs provides the right solution for every application, and customers only pay for the performance actually required for a specific task
The S7-300 can be set up in a modular configuration without the need for slot rules for I/O modules
There is a wide range of modules available both for the centralized and the distributed configuration with ET 200M.
Integral PROFINET interfaces enable simple networking of the controllers, and simple data exchange with the operations management level
The narrow module width results in a compact controller design or a small control cabinet.
The ability to integrate powerful CPUs with Industrial Ethernet/PROFINET interface, integrated technological functions, or fail-safe designs make additional investments unnecessary.
| PART NUMBER | DESCRIPTION |
| 6ES7312-1AE14-0AB0 | SIMATIC S7-300, CPU 312CPU WITH MPI INTERFACE,INTEGRATED 24 V DC POWER SUPPLY32 KBYTE WORKING MEMORY,MICRO MEMORY CARD NECESSARY |
| 6ES7312-5BF04-0AB0 | SIMATIC S7-300, CPU 312CCOMPACT CPU WITH MPI,10 DI/6 DO,2 FAST COUNTERS (10 KHZ),INTEGRATED 24V DC POWER SUPPLY,64 KBYTE WORKING MEMORY,FRONT CONNECTOR (1 X 40PIN) ANDMICRO MEMORY CARD REQUIRED |
| 6ES7313-5BG04-0AB0 | SIMATIC S7-300, CPU 313C,COMPACT CPU WITH MPI,24 DI/16 DO, 4AI, 2AO 1 PT100,3 FAST COUNTERS (30 KHZ),INTEGRATED 24V DC POWER SUPPLY,128 KBYTE WORKING MEMORY,FRONT CONNECTOR (2 X 40PIN) ANDMICRO MEMORY CARD REQUIRED |
| 6ES7313-6BG04-0AB0 | SIMATIC S7-300, CPU 313C-2 PTPCOMPACT CPU WITH MPI,16 DI/16 DO,3 FAST COUNTERS (30 KHZ),INTEGRATED INTERFACE RS485,INTEGRATED 24V DC POWER SUPPLY,128 KBYTE WORKING MEMORY,FRONT CONNECTOR (1 X 40PIN) ANDMICRO MEMORY CARD REQUIRED |
| 6ES7313-6CG04-0AB0 | SIMATIC S7-300, CPU 313C-2DPCOMPACT CPU WITH MPI,16 DI/16 DO,3 FAST COUNTERS (30 KHZ),INTEGRATED DP INTERFACE,INTEGRATED 24V DC POWER SUPPLY,128 KBYTE WORKING MEMORY,FRONT CONNECTOR (1 X 40PIN) ANDMICRO MEMORY CARD REQUIRED |
| 6ES7314-1AG14-0AB0 | SIMATIC S7-300, CPU 314CPU WITH MPI INTERFACE,INTEGRATED 24V DC POWER SUPPLY,128 KBYTE WORKING MEMORY,MICRO MEMORY CARD NECESSARY |
| 6ES7314-6BH04-0AB0 | SIMATIC S7-300, CPU 314C-2 PTPCOMPACT CPU WITH MPI,24 DI/16 DO, 4AI, 2AO, 1 PT100,4 FAST COUNTERS (60 KHZ),INTEGRATED INTERFACE RS485,INTEGRATED 24V DC POWER SUPPLY,192 KBYTE WORKING MEMORY,FRONT CONNECTOR (2 X 40PIN) ANDMICRO MEMORY CARD REQUIRED |
| 6ES7314-6CH04-0AB0 | SIMATIC S7-300, CPU 314C-2 DPCOMPACT CPU WITH MPI,24 DI/16 DO, 4AI, 2AO, 1 PT100,4 FAST COUNTERS (60 KHZ),INTEGRATED DP INTERFACE,INTEGRATED 24V DC POWER SUPPLY,192 KBYTE WORKING MEMORY,FRONT CONNECTOR (2 X 40PIN) ANDMICRO MEMORY CARD REQUIRED |
| 6ES7314-6EH04-0AB0 | SIMATIC S7-300, CPU 314C-2PN/DPCOMPACT CPU WITH192 KBYTE WORKING MEMORY,24 DI/16 DO, 4AI, 2AO, 1 PT100,4 FAST COUNTERS (60 KHZ),1. INTERFACE MPI/DP 12MBIT/S,2. INTERFACE ETHERNET PROFINET,WITH 2 PORT SWITCH,INTEGRATED 24V DC POWER SUPPLY,FRONT CONNECTOR (2 X 40PIN) ANDMICRO MEMORY CARD REQUIRED |
| 6ES7315-2AH14-0AB0 | SIMATIC S7-300, CPU 315-2DPCPU WITH MPI INTERFACEINTEGRATED 24 V DC POWER SUPPLY256 KBYTE WORKING MEMORY2. INTERFACE DP-MASTER/SLAVEMICRO MEMORY CARD NECESSARY |
| 6ES7315-2EH14-0AB0 | SIMATIC S7-300 CPU 315-2 PN/DP,CENTRAL PROCESSING UNIT WITH384 KBYTE WORKING MEMORY,1. INTERFACE MPI/DP 12MBIT/S,2. INTERFACE ETHERNET PROFINET,WITH 2 PORT SWITCH,MICRO MEMORY CARD NECESSARY |
| 6ES7315-2FJ14-0AB0 | SIMATIC S7-300 CPU315F-2 PN/DP,CENTRAL PROCESSING UNIT WITH512 KBYTE WORKING MEMORY,1. INTERFACE MPI/DP 12MBIT/S,2. INTERFACE ETHERNET PROFINET,WITH 2 PORT SWITCH,MICRO MEMORY CARD NECESSARY |
| 6ES7315-6FF04-0AB0 | SIMATIC S7-300, CPU 315F-2DPFAILSAFE CPU WITH MPI INTERFACEINTEGRATED 24V DC POWER SUPPLY,384 KB WORKING MEMORY,40MM WIDE,2. INTERFACE DP-MASTER/SLAVEMICRO MEMORY CARD REQUIRED |
| 6ES7315-7TJ10-0AB1 | TRAINING BUNDLE CPU315T-3 PN/DPCONSISTING OF:1 X S7-300 CPU 315T-3 PN/DP;1 X POWER SUPPLY PS 307 5A,1 X IM174,1 X SM323 16DI/16DO,1X CONNECTION CABLE 830-2 PB,1 X MICRO MEMORY CARD 8MB,1 X ETHERNET CABLE RJ45/RJ45 6M1 X DIN RAIL 480MM,3 X FRONT CONN.,40PIN, SCREW,1X S7-TECHNOLOGY OPTION PACKAGE*******************************FOR EDUCATIONAL PURPOSES ONLY |
| 6ES7317-2AK14-0AB0 | SIMATIC S7-300, CPU317-2 DP,CENTRAL PROCESSING UNIT WITH1 MBYTE WORKING MEMORY,1. INTERFACE MPI/DP 12MBIT/S,2. INTERFACE DP-MASTER/SLAVE,MICRO MEMORY CARD NECESSARY |
| 6ES7317-2EK14-0AB0 | SIMATIC S7-300 CPU 317-2 PN/DP,CENTRAL PROCESSING UNIT WITH1 MB WORKING MEMORY,1. INTERFACE MPI/DP 12MBIT/S,2. INTERFACE ETHERNET PROFINET,WITH 2 PORT SWITCH,MICRO MEMORY CARD NECESSARY |
| 6ES7317-2FK14-0AB0 | SIMATIC S7-300 CPU317F-2 PN/DP,CENTRAL PROCESSING UNIT WITH1.5 MBYTE WORKING MEMORY,1. INTERFACE MPI/DP 12MBIT/S,2. INTERFACE ETHERNET PROFINET,WITH 2 PORT SWITCH,MICRO MEMORY CARD NECESSARY |
| 6ES7317-6TK10-0AB0 | SIMATIC S7-300,CPU 317TF-3 PN/DP,CENTRAL PROCESSING UNIT FORPLC, TECHNOLOGY AND SAFETY,1,5 MBYTE WORKING MEMORY,1. INTERFACE MPI/DP 12MBIT/S,2. INTERFACE DP(DRIVE),3. INTERFACE ETHERNET PROFINETWITH 2 PORT SWITCH,INTEGRATED I/O FOR TECHNOLOGY,FRONT CONNECTOR (1 X 40PIN) ANDMICRO MEMORY CARD MIN. 8 MBNECESSARY |
| 6ES7317-6UL10-0AB0 | SIMATIC S7-300,CPU 317T-3 PN/DP,CENTRAL PROCESSING UNIT FORPLC AND TECHNOLOGY,1024 KBYTE WORKING MEMORY,1. INTERFACE MPI/DP 12MBIT/S,2. INTERFACE DP(DRIVE),3. INTERFACE ETHERNET PROFINETWITH 2 PORT SWITCH,INTEGRATED I/O FOR TECHNOLOGY,FRONT CONNECTOR (1 X 40PIN) ANDMICRO MEMORY CARD MIN. 8 MBNECESSARY |
| 6ES7318-3EL01-0AB0 | SIMATIC S7-300 CPU 319-3 PN/DP,CENTRAL PROCESSING UNIT WITH2 MBYTE WORKING MEMORY,1. INTERFACE MPI/DP 12MBIT/S,2. INTERFACE DP-MASTER/SLAVE,3. INTERFACE ETHERNET PROFINET,WITH 2 PORT SWITCH,MICRO MEMORY CARD NECESSARY |
| 6ES7318-3FL01-0AB0 | SIMATIC S7-300 CPU319F-3 PN/DP,CENTRAL PROCESSING UNIT WITH2.5 MBYTE WORKING MEMORY,1. INTERFACE MPI/DP 12MBIT/S,2. INTERFACE DP-MASTER/SLAVE,3. INTERFACE ETHERNET PROFINET,WITH 2 PORT SWITCH,MICRO MEMORY CARD NECESSARY |
| 6ES7953-8LF30-0AA0 | SIMATIC S7, MICRO MEMORY CARDFOR S7-300/C7/ET 200,3.3 V NFLASH, 64 KB |
| 6ES7953-8LG30-0AA0 | SIMATIC S7, MICRO MEMORY CARDFOR S7-300/C7/ET 200,3.3 V NFLASH, 128 KBYTES |
| 6ES7953-8LJ30-0AA0 | SIMATIC S7, MICRO MEMORY CARDF. S7-300/C7/ET 200,3.3 V NFLASH, 512 KBYTES |
| 6ES7953-8LL31-0AA0 | SIMATIC S7, MICRO MEMORY CARDP. S7-300/C7/ET 200,3.3 V NFLASH, 2 MBYTES |
| 6ES7953-8LM20-0AA0 | SIMATIC S7, MICRO MEMORY CARDFOR S7-300/C7/ET 200,3.3 V NFLASH, 4 MB |
| 6ES7953-8LP20-0AA0 | SIMATIC S7, MICRO MEMORY CARDFOR S7-300/C7/ET 200,3.3 V NFLASH, 8 MB |
| 6ES7321-1BH02-0AA0 | SIMATIC S7-300, DIGITAL INPUTSM 321, OPTICALLY ISOLATED,16DI, 24 V DC, 1 X 20 PIN |
| 6ES7321-1BH50-0AA0 | SIMATIC S7-300, DIGITAL INPUTSM 321, OPTICALLY ISOLATED16DI, 24 V DC, SOURCE INPUT,1 X 20 PIN |
| 6ES7321-1BL00-0AA0 | SIMATIC S7-300, DIGITAL INPUTSM 321, OPTICALLY ISOLATED32DI, 24 V DC, 1 X 40 PIN |
| 6ES7321-1BP00-0AA0 | SIMATIC S7-300 DIGITAL INPUTSM321, OPTICALLY ISOLATEDIN GROUPS OF 16,64 DI,DC 24V, 3MS,SINKING/SOURCINGTERMINAL BLOCKS6ES7392-1.N00-0AA0 ANDCABLES 6ES7392-4...0-0AA0NECESSARY |
| 6ES7321-1CH00-0AA0 | SIMATIC S7-300, DIGITAL INPUTSM 321, OPTICALLY ISOLATED,16 DI, AC/DC 24 - 48V WITHONE CHANNEL PER COMMON,1 X 40 PIN |
| 6ES7321-1CH20-0AA0 | SIMATIC S7-300, DIGITAL INPUTSM 321, OPTICALLY ISOLATED,16 DI, DC 48-125V, 1 X 20 PIN |
| 6ES7321-1BH10-0AA0 | SIMATIC S7-300, DIGITAL INPUTSM 321, GALVANICALLY ISOLATED,16DI, 24 V DC, 1 X 20 PIN,0.05 MS INPUT DELAY |
| 6ES7321-1EL00-0AA0 | SIMATIC S7-300, DIGITAL INPUTSM 321, OPTICALLY ISOLATED,32 DI, 120V AC, 1 X 40 PIN |
| 6ES7321-1FF01-0AA0 | SIMATIC S7-300, DIGITAL INPUTSM 321, OPTICALLY ISOLATED,8 DI, 120V/230V AC, 1 X 20 PIN |
| 6ES7321-1FF10-0AA0 | SIMATIC S7-300, DIGITAL INPUTSM 321, OPTICALLY ISOLATED,8 DI, 120V/230V AC, 1 X 40 PIN,WITH 1 POINT PER COMMON |
| 6ES7321-1FH00-0AA0 | SIMATIC S7-300, DIGITAL INPUTSM 321, OPTICALLY ISOLATED16 DI, 120/230V AC, 1 X 20 PIN |
| 6ES7321-7BH01-0AB0 | SIMATIC S7-300, DIGITAL INPUTSM 321, GALVANICALLY ISOLATED,16 DI, DC 24V, 1 X 20 PIN,PROCESS INTERRUPT, DIAGNOSTICS,FIT FOR ISOCHRONE MODE |
| 6ES7322-1BF01-0AA0 | SIMATIC S7-300, DIGITAL OUTPUTSM 322, OPTICALLY ISOLATED,8 DO, 24V DC, 2A, 1 X 20 PIN |
| 6ES7322-1BH01-0AA0 | SIMATIC S7-300, DIGITAL OUTPUTSM 322, OPTICALLY ISOLATED,16 DO, 24V DC, 0.5A, 1 X 20 PINSUM OF OUTPUT CURRENTS 4A/GROUP(8A/MODULE) |
| 6ES7322-1BH10-0AA0 | SIMATIC S7-300, DIGITAL OUTPUTSM 322 HIGH SPEED,GALVANICALLY ISOLATED,16 DO, 24V DC, 0.5A, 1 X 20 PIN |
| 6ES7322-1BL00-0AA0 | SIMATIC S7-300, DIGITAL OUTPUTSM 322, OPTICALLY ISOLATED,32DO, 24V DC, 0.5A, 1 X 40 PIN,SUM OF OUTPUT CURRENTS 4A/GROUP(16A/MODULE) |
| 6ES7322-1BP00-0AA0 | SIMATIC S7-300 DIGITAL OUTPUTSM322, OPTICALLY ISOLATEDIN GROUPS OF 16,64 DO, DC 24V, 0.3A, (SOURCING)TOTAL CURRENT 2A/GROUP8A/MODULETERMINAL BLOCKS6ES7392-1.N00-0AA0 ANDCABLES 6ES7392-4...0-0AA0NECESSARY |
| 6ES7322-1BP50-0AA0 | SIMATIC S7-300 DIGITAL OUTPUTSM322, OPTICALLY ISOLATEDIN GROUPS OF 16,64DO, DC 24V, 0.3A M-WRITETOTAL CURRENT 2A/GROUP8A/MODULETERMINAL BLOCKS6ES7392-1.N00-0AA0 ANDCABLES 6ES7392-4...0-0AA0NECESSARY |
| 6ES7322-8BF00-0AB0 | SIMATIC S7-300, DIGITAL OUTPUTSM 322, OPTICALLY ISOLATED,8 DO, 24V DC, 0.5 A (1 X 8 DO),SHORT-CIRCUIT PROTECTION,DIAGNOSTICS, 1 X 20 PIN |
| 6ES7322-5GH00-0AB0 | SIMATIC S7-300, DIGITAL OUTPUTSM 322, OPTICALLY ISOLATED,16 DA (SOLID STATE RELAY),AC/DC 24 - 48V; 0.5A;1.5A SURGE CURRENT, ONE CHANNELPER COMMON, 1 X 40 PIN |
| 6ES7322-1CF00-0AA0 | SIMATIC S7-300, DIGITAL OUTPUTSM 322, OPTICALLY ISOLATED,8 DO, DC 48-125V, 1.5A,1 X 20 PIN |
| 6ES7322-1FF01-0AA0 | SIMATIC S7-300, DIGITAL OUTPUTSM 322, OPTICALLY ISOLATED,8 DO, 120/230V AC, 1A,1 X 20 PIN |
| 6ES7322-5FF00-0AB0 | SIMATIC S7-300, DIGITAL OUTPUTSM 322, OPTICALLY ISOLATED,8 DO, 120/230V AC, 2A,WITH 1 POINT PER COMMON ANDSELECTABLE FAIL MODE,1 X 40 PIN |
| 6ES7322-1FH00-0AA0 | SIMATIC S7-300, DIGITAL OUTPUTSM 322, OPTICALLY ISOLATED16 DO, 120/230V AC, 1 A,1 X 20 PIN |
| 6ES7322-1FL00-0AA0 | SIMATIC S7-300, DIGITAL OUTPUTSM 322, OPTICALLY ISOLATED,32 DO, AC 120V/230V, 1A, DOUBLEWIDTH HOUSING, 2 X 20 PIN |
| 6ES7322-1HF01-0AA0 | SIMATIC S7-300, DIGITAL OUTPUTSM 322, OPTICALLY ISOLATED,8 DO (RELAY), 1 X 20 PIN,24V DC, 2A OR 230V AC, 2A |
| 6ES7322-1HF10-0AA0 | SIMATIC S7-300, DIGITAL OUTPUTSM 322, OPTICALLY ISOLATED,8 DO (RELAY), 1 X 40 PIN,24V DC, 5A OR 230V AC, 5A,CONNECTOR W.SPRING TERMINAL CANBE USED FROM 6ES7392-1BM01-0AA0 |
| 6ES7322-5HF00-0AB0 | SIMATIC S7-300, DIGITAL OUTPUTSM 322, OPTICALLY ISOLATED,8 DO (RELAY), 1 X 40 PIN,24V DC, 120 - 230V AC, 5A WITHINTEGR. SNUBBER F. IND. LOADS |
| 6ES7322-1HH01-0AA0 | SIMATIC S7-300, DIGITAL OUTPUTSM 322, OPTICALLY ISOLATED16DO, RELAY CONTACTS,1 X 20 PIN |
| 6ES7323-1BH01-0AA0 | SIMATIC S7-300, DIGITAL MODULESM 323, OPTICALLY ISOLATED,8 DI AND 8 DO, 24V DC, 0.5AAGGREGATE CURRENT 2A, 1X20 PIN |
| 6ES7323-1BL00-0AA0 | SIMATIC S7-300, DIGITAL MODULESM 323, OPTICALLY ISOLATED,16 DI AND 16 DO, 24V DC, 0.5A,AGGREGATE CURRENT 4A, 1X40 PIN |
| 6ES7327-1BH00-0AB0 | SIMATIC S7-300, DIGITAL MODULESM 327, OPTICALLY ISOLATED,8 DI AND 8 DX, 24V DC, 0.5A1 X 20 PIN,8DX CHANNELWISEPROGRAMMABLE AS DI OR DO |
| 6ES7331-1KF02-0AB0 | SIMATIC S7-300, ANALOG INPUTSM 331, OPTICALLY ISOLATED,8 AI, 13 BIT RESOLUTION,U/I/RESISTANCE/PT100,NI100, NI1000, LG-NI1000,PTC / KTY,66 MS MODULE UPDATE,1 X 40 PIN |
| 6ES7331-7KF02-0AB0 | SIMATIC S7-300, ANALOG INPUTSM 331, OPTICALLY ISOLATED,8AI, RESOLUTION 9/12/14 BITS,U/I/THERMOCOUPLE/RESISTANCEINTERRUPT, DIAGNOSTICS; 1X20PINREMOVE/INSERT W. BACKPLANE BUS |
| 6ES7331-7KB02-0AB0 | SIMATIC S7-300, ANALOG INPUTSM 331, OPTICALLY ISOLATED,2 AI, 9/12/14 BITS RESOLUTION,U/I/THERMOCOUPLE/RESISTANCE,INTERRUPT, DIAGNOSTICS,1 X 20 PIN,REMOVE/INSERT W. BACKPLANE BUS |
| 6ES7331-7NF00-0AB0 | SIMATIC S7-300, ANALOG INPUTSM 331, OPTICALLY ISOLATED,8 AE; +/-5/10V, 1-5 V, +/-20MA,0/4 TO 20MA, 16 BIT (55 MS),1 COMMON POINT(50 V COM.),1 X 40 PIN |
| 6ES7331-7NF10-0AB0 | SIMATIC S7-300, ANALOG INPUTSM 331, OPTICALLY ISOLATED,8 AE; +/-5/10V, 1-5 V, +/-20MA,0/4 TO 20MA, 16 BIT,1 COMMON POINT(60 V COM.),4 CHANNEL MODE: 10 MS,8 CHANNEL MODE: 23-95 MS,1 X 40 PIN |
| 6ES7331-7HF01-0AB0 | SIMATIC S7-300, ANALOG INPUTSM 331, GALVANICALLY ISOLATED,8 AI, 14 BIT, 0.052MS/CHANNEL,CURRENT, VOLTAGE, INTERRUPTS,DIAGNOSTICS,1 X 20 PIN,FIT FOR ISOCHRONE MODEIMPROVED DP-CYCLE TIME FORISOCHRONE MODE |
| 6ES7331-7PF01-0AB0 | SIMATIC S7-300, ANALOG INPUTSM 331, OPT. ISOL.,2/3/4 WIRE,8AI, RESISTANCE, PT100/200/1000NI100/120/200/500/1000, CU10,PLUS CHARACTERISTICS ACCORDINGTO GOST STANDARD16 (INTERN 24) BIT, 50MS,1 X 40 PIN |
| 6ES7331-7PF11-0AB0 | SIMATIC S7-300, ANALOG INPUTSM 331, OPTICALLY ISOLATATED,8 AI THERMOCOUPLE,TYPE B, E, J, K, L, N, R, S, TTXK/TXK(L) ACCORDING GOST16 BIT, 50 MS, 1 X 40 PIN |
| 6ES7332-5HD01-0AB0 | SIMATIC S7-300, ANALOG OUTPUTSM 332, OPTICALLY ISOLATED,4 AO, U/I; DIAGNOSTICS;RESOLUTION 11/12 BITS, 20 PIN,REMOVE/INSERT W. ACTIVE,BACKPLANE BUS |
| 6ES7332-7ND02-0AB0 | SIMATIC S7,SM 332 ANALOG OUTPUTCHANNEL TO CHANNEL ISOLATION,4 AO, 16 BIT RESOLUTION,0-10V, 1-5V, +/-10V, +/-20MA,0/4 - 20MA, 20 PIN,FIT FOR ISOCHRONE MODEIMPROVED DP-CYCLE TIME FORISOCHRONE MODE |
| 6ES7332-5HB01-0AB0 | SIMATIC S7-300, ANALOG OUTPUTSM 332, OPTICALLY ISOLATED,2 AO, U/I; 11/12 BITS RESOL.,20 PIN., REMOVE/INSERT WITHACTIVE BACKPLANE BUS |
| 6ES7332-5HF00-0AB0 | SIMATIC S7-300, ANALOG OUTPUTSM 332, OPTICALLY ISOLATED,8 AO, U/I; DIAGNOSTICS;RESOLUTION 11/12 BITS, 40 PIN,REMOVE/INSERT W. ACTIVE,BACKPLANE BUS |
| 6ES7334-0CE01-0AA0 | SIMATIC S7, ANALOG INPUT/OUTPUTSM 334, NON-ISOLATED,4 AI/2 AO, 1 X 20 PIN,REMOVE AND INSERT WITHBACKPLAIN BUS |
| 6ES7334-0KE00-0AB0 | SIMATIC S7-300, ANALOG MODULESM 334, OPTICALLY ISOLATED,4AE/2AA, 12 BIT, 0-10V F. PT100(CLIMAT RANGE -120 - 155 DEGR.)AND 10 KOHM MEASURING RANGE,1 X 20 PIN |
| 6ES7340-1AH02-0AE0 | SIMATIC S7-300, CP 340COMMUNICATION PROCESSOR WITHRS232C INTERFACE (V.24)INCL. CONFIG. PACKAGE ON CD |
| 6ES7340-1BH02-0AE0 | SIMATIC S7-300, CP 340COMMUNICATION PROCESSOR WITH20MA INTERFACE (TTY)INCL. CONFIG. PACKAGE ON CD |
| 6ES7340-1CH02-0AE0 | SIMATIC S7-300, CP 340COMMUNICATION PROCESSOR WITHRS422/485 INTERFACEINCL. CONFIG. PACKAGE ON CD |
| 6ES7341-1AH02-0AE0 | SIMATIC S7-300, CP341COMMUNICATION PROCESSORWITH RS232C INTERFACE (V.24)INCL. CONFIG. PACKAGE ON CD |
| 6ES7341-1BH02-0AE0 | SIMATIC S7-300, CP341COMMUNICATION PROCESSORWITH 20MA INTERFACE (TTY)INCL. CONFIG. PACKAGE ON CD |
| 6ES7341-1CH02-0AE0 | SIMATIC S7-300, CP341COMMUNICATION PROCESSORWITH RS422/485 INTERFACEINCL. CONFIG. PACKAGE ON CD |
| 6ES7350-1AH03-0AE0 | SIMATIC S7-300, COUNTER MODULEFM 350-1 FOR S7-300,COUNTER FUNCTIONS UP TO 500 KHZ1 CHANNEL FOR CONNECTION OF5V AND 24V INCREMENTAL ENCODERSISOCHRON MODE,MEASUREMENT MODEINCL. CONFIG. PACKAGE ON CD |
| 6ES7350-2AH01-0AE0 | SIMATIC S7-300, COUNTER MODULEFM 350-2, 8 CHANNELS, 20 KHZ,24V ENCODER FOR COUNTING,MEASURING FREQUENCIES, SPEEDMEASUREMENT, PERIOD DURATIONMEASUREMENT AND PROPORTIONINGINCL. CONFIG. PACKAGE ANDELECTRONIC DOCU ON CD |
| 6ES7351-1AH02-0AE0 | SIMATIC S7-300, FM 351POSITIONING MODULE FOR RAPID/CREEP FEED DRIVEINCL. CONFIG. PACKAGE ON CD |
| 6ES7352-1AH02-0AE0 | SIMATIC S7-300, FM 352ELECTRON. CAM-OPERATED CONTROLINCL. CONFIG. PACKAGE ON CD |
| 6ES7352-5AH11-0AE0 | SIMATIC S7-300, FM352-5WITH SRC OUT,HIGH SPEED BOOLEAN PROCESSOR,FOR HIGH-SPEED LOGIC OPERATION12 DI, 8 DO, 1 ENCODER INTERF.FOR RS422 INCR./SSI ENCODER |
| 6ES7390-1AB60-0AA0 | SIMATIC S7-300, RAILL=160MM |
| 6ES7390-1AE80-0AA0 | SIMATIC S7-300, RAILL=480MM |
| 6ES7390-1AF30-0AA0 | SIMATIC S7-300, RAILL=530MM |
| 6ES7390-1AJ30-0AA0 | SIMATIC S7-300, RAILL=830MM |
| 6ES7392-1AM00-0AA0 | SIMATIC S7-300,FRONT CONNECTORWITH SCREW CONTACTS, 40-PIN |
| 6ES7392-1AJ00-0AA0 | SIMATIC S7-300, FRONT CONNECTORFOR SIGNAL MODULESWITH SCREW CONTACTS, 20-PIN |
| 6ES7392-1AN00-0AA0 | S7-300, TERMINAL BLOCKWITH SCREW-TYPE TERMINALS FOR64 CHANNEL MODULES OF S7-300,2 PIECES PER PACKAGING UNIT |
| 6ES7392-4BB00-0AA0 | S7-300 CONNECTING CABLEFOR 64 CHANNEL MODULES,LENGTH: 1M2 PIECES PER PACKAGING UNIT |
| 6ES7392-4BC50-0AA0 | S7-300 CONNECTING CABLEFOR 64 CHANNEL MODULES,LENGTH: 2.5M2 PIECES PER PACKAGING UNIT |
| 6ES7392-4BF00-0AA0 | S7-300 CONNECTING CABLEFOR 64 CHANNEL MODULES,LENGTH: 5M2 PIECES PER PACKAGING UNIT |
| 6ES7360-3AA01-0AA0 | SIMATIC S7-300,INTERFACE MODULEIM 360 IN CENTRAL RACKFOR CONNECTING MAX.3 EXPANSION RACKS,WITH K-BUS |
| 6ES7361-3CA01-0AA0 | SIMATIC S7-300,INTERFACE MODULEIM 361 IN EXPANSION RACK FORCONNECTING TO CENTRAL RACK(IM360),24 V DC SUPPLY VOLTAGE,WITH K-BUS |
| 6ES7365-0BA01-0AA0 | SIMATIC S7-300,INTERFACE MODULEIM 365 FOR CONNECTINGAN EXPANSION RACK, W/O K-BUS,2 MODULES + CONNECTING CABLE 1M |
| 6ES7368-3BC51-0AA0 | SIMATIC S7-300,CONNECTING CABLEBETWEEN IM 360/IM 3612.5M |
| 6ES7974-0AA00-0AA0 | SIMATIC S7, MEAS. RANGE MODULESFOR ANALOG INPUTS,2 PIECES PER PACKAGING UNIT |
| 6ES7307-1BA01-0AA0 | SIMATIC S7-300STABILIZED POWER SUPPLY PS307INPUT: 120/230 V ACOUTPUT: DC 24 V DC/2 A |
| 6ES7307-1EA01-0AA0 | SIMATIC S7-300STABILIZED POWER SUPPLY PS307INPUT: 120/230 V ACOUTPUT: DC 24 V DC/5 A |
| 6ES7307-1EA80-0AA0 | SIMATIC S7-300 OUTDOORSTABILIZED POWER SUPPLY PS307INPUT: 120/230 V ACOUTPUT: 24 V DC/5 A |
| 6ES7307-1KA02-0AA0 | SIMATIC S7-300STABILIZED POWER SUPPLY PS307INPUT: 120/230 V ACOUTPUT: DC 24 V DC/10 A |
| 6GK1571-0BA00-0AA0 | PC ADAPTER USB A2USB-ADAPTER (USB V2.0)FOR CONNECTING A PG/PCOR NOTEBOOK TO SIMATIC S7VIA PROFIBUS OR MPIUSB CABLE 5M INCLUDEDMPI-KABEL 0,3MCAN BE USED UNDER WINXP/VISTA/WINDOWS 7 32/64BIT |
| 6ES7810-4CC10-0YA5 | SIMATIC S7, STEP7 V5.5 SP4,FLOATING LICENSE FOR 1 USER,E-SW, SW AND DOCU. ON DVD,LICENSE KEY ON USB STICK,CLASS A,5 LANGUAGES (GE,EN,FR,IT,SP),EXECUTABLE UNDERWINXPPROF, WINDOWS 7 ULTIMATE,WINDOWS 7 PROFESSIONALREFERENCE-HW: S7-300/400, C7 |
SIMATIC STEP 7.x
Particularly in the finishing technique the S7-300 is used in the following industries:
Automobile industry
General mechanical engineering
Building of special machines
Series mechanical engineering, OEM
Plastics processing
Packaging industry
Food and Beverage industry
Process engineering
Fast counting/fairs with direct access on the hardware counters
Simply positioning with direct control the MICROMASTER frequency static frequency changers
PID-Regulation with integrated functional module
