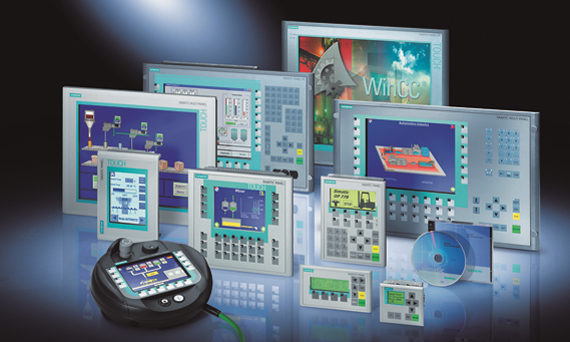

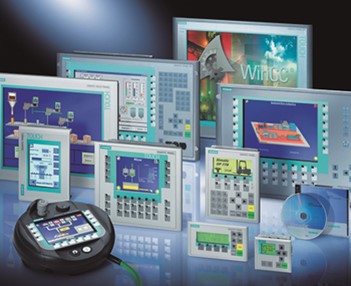

HMI include:
• Device Information: cam switches, buttons, Analog Value ...
• Equipment manufacturing information: lights, horn, gauges, the recorder paper.
• HMI communicates with the PLC via the RS232 communication, Profibus, Profinet (Ethernet IP)
| PART NUMBER | DESCRIPTION |
| 6ES7272-0AA30-0YA1 | SIMATIC S7, TD 200 TEXTDISPLAYFOR S7-200, 2 LINES,WITH CABLE (2.5M) AND MOUNTINGACCESSORIES, CONFIGURATIONWITH STEP7-MICRO/WINW/O ATEX CERTIFICATE |
| 6AV6640-0AA00-0AX1 | TD400C TEXTDISPLAY, 4 LINESFOR SIMATIC S7-200WITH CABLE (2,5M) ANDMOUNTING ACCESSORIESWITH CUSTOMIZEDFACEPLATE,CONFIGURATION WITHSTEP7-MICRO/WIN V4 SP6 |
| 6AV6640-0BA11-0AX0 | SIMATIC OPERATOR PANELOP 73MICRO FOR SIMATIC S7-2003" LC DISPLAY, BACKLITWITH GRAPHICS CAPABILITYCONFIGURABLEWINCC FLEXIBLE 2004 MICRO HSPUPWARDS;CONTAINS OPEN-SOURCE-SW, WHICHIS PROVIDED FREE OF CHARGE.FOR DETAILS SEE ENCLOSED CD |
| 6AV6640-0CA11-0AX1 | SIMATIC TOUCH PANEL TP 177MICROFOR SIMATIC S7-2005.7" BLUE MODE STN DISPLAYCONFIGURABLEWINCC FLEXIBLE 2004 MICRO HSPUPWARDS;CONTAINS OPEN-SOURCE-SW, WHICHIS PROVIDED FREE OF CHARGE.FOR DETAILS SEE ENCLOSED CD |
| 6AV6641-0AA11-0AX0 | SIMATIC OPERATOR PANEL OP 733" LC DISPLAY, BACKLIT,WITH GRAPHICS CAPABILITY,MPI-/PROFIBUS-DP INTERFACE,UP TO 1.5MB, CONFIGURABLEWINCC FLEXIBLE 2004 COMPACT HSPUPWARDS;CONTAINS OPEN-SOURCE-SW, WHICHIS PROVIDED FREE OF CHARGE.FOR DETAILS SEE ENCLOSED CD |
| 6AV6641-0BA11-0AX1 | SIMATIC OPERATOR PANEL OP77ABACKLIT LC DISPLAY,4.5" DISPL. W. GRAPHICS CAPABILMPI-/PROFIBUS-DP INTERFACEUP TO 1,5MB, FOR CONFIGURATIONWINCC FLEXIBLE 2004 COMPACT HSPUPWARDS;CONTAINS OPEN-SOURCE-SW, WHICHIS PROVIDED FREE OF CHARGE.FOR DETAILS SEE ENCLOSED CD |
| 6AV6641-0CA01-0AX1 | SIMATIC OPERATOR PANEL OP77BBACKLIT LC DISPLAY,4.5" DISPL. W. GRAPHICS CAPABILMPI-/PROFIBUS-DP INTERFACEUPTO 12 MB,PRINTER/USB INTERFACE,SLOT FOR MMC CARD,FOR CONFIGURATION OFWINCC FLEXIBLE 2004 COMPACT*******************************FOR THIS PRODUCT A DELIVERYSTOP WILL BE DECLARED FROMOCTOBER 1ST, 2014.INFORMATION ABOUT SUCCESSORSEE SIMATIC UPDATE ID: 62977695FOR FURTHER QUESTIONS PLEASEAPPROACH YOUR SIEMENSCONTACT PERSON. |
| 6AV6642-0AA11-0AX1 | SIMATIC TOUCH PANEL TP 177A5,7" BLUE MODE STN-DISPLAY,MPI/PROFIBUS-DP INTERFACE,CONFIGURABLEWINCC FLEXIBLE 2004 COMPACT HSPUPWARDS;CONTAINS OPEN-SOURCE-SW, WHICHIS PROVIDED FREE OF CHARGE.FOR DETAILS SEE ENCLOSED CD |
| 6AV6642-0BA01-1AX1 | SIMATIC TP177B 6" PN/DPSTN 265 COLOR-DISPLAYMPI-/PROFIBUS-DP - PROTOCOLRS485-/RS422-/USB - INTERFACEETHERNET10/100 INTERFACEPRINTER - INTERFACESLOT FOR MM-CARDCONFIGURABLE WITHWINCC FLEXIBLE 2005*******************************FOR THIS PRODUCT A DELIVERYSTOP WILL BE DECLARED FROMOCTOBER 1ST, 2014.INFORMATION ABOUT SUCCESSORSEE SIMATIC UPDATE ID: 62977695FOR FURTHER QUESTIONS PLEASEAPPROACH YOUR SIEMENSCONTACT PERSON. |
| 6AV6642-0BC01-1AX1 | SIMATIC TP177B 6" DPBLUE MODE STN-DISPLAYMPI-/PROFIBUS-DP PROTOCOLRS485-/RS422-/USB INTERFACEPRINTER - INTERFACESLOT FOR MMCARDCONFIGURABLE WITHWINCC FLEXIBLE 2005*******************************FOR THIS PRODUCT A DELIVERYSTOP WILL BE DECLARED FROMOCTOBER 1ST, 2014.INFORMATION ABOUT SUCCESSORSEE SIMATIC UPDATE ID: 62977695FOR FURTHER QUESTIONS PLEASEAPPROACH YOUR SIEMENSCONTACT PERSON. |
| 6AV6642-0BD01-3AX0 | SIMATIC TP177B 4" COLOR PN/DPTFT 256 COLOR-16:9-DISPLAY,MPI-/PROFIBUS-DP - PROTOCOLRS485-/RS422-/USB - INTERFACEETHERNET10/100 INTERFACEPRINTER - INTERFACESLOT FOR MM-CARDCONFIGURABLE WITHWINCC FLEXIBLE 2008*******************************FOR THIS PRODUCT A DELIVERYSTOP WILL BE DECLARED FROMOCTOBER 1ST, 2014.INFORMATION ABOUT SUCCESSORSEE SIMATIC UPDATE ID: 62977695FOR FURTHER QUESTIONS PLEASEAPPROACH YOUR SIEMENSCONTACT PERSON. |
| 6AV6642-0EA01-3AX0 | SIMATIC MP 177 6" TOUCHMULTI PANEL W. RETENTIVE MEMORY5.7" TFT DISPLAY2 MB CONFIGURING MEMORY,CONFIGURABLE WITHWINCC FLEXIBLE 2008COMPACT OR HIGHER*******************************THIS PRODUCT IS NO LONGERAVAILABLE FROM OCT. 1ST, 2014.INFORMATION ABOUT SUCCESSORSEE SIMATIC UPDATE ID: 62977695FOR FURTHER QUESTIONS PLEASEAPPROACH YOUR SIEMENSCONTACT PERSON. |
| 6AV6642-0DA01-1AX1 | SIMATIC OP177B 6" PN/DPSTN 256 COLOR DISPLAYTOUCH AND KEYSMPI-/PROFIBUS-DP PROTOCOLRS485-/RS422-/USB- INTERFACEETHERNET - INTERFACEPRINTER INTERFACESLOT FOR MM-CARDCONFIGURABLE WITHWINCC FLEXIBLE 2005*******************************THIS PRODUCT IS NO LONGERAVAILABLE FROM OCT. 1ST, 2014.INFORMATION ABOUT SUCCESSORSEE SIMATIC UPDATE ID: 62977695FOR FURTHER QUESTIONS PLEASEAPPROACH YOUR SIEMENSCONTACT PERSON. |
| 6AV6642-0DC01-1AX1 | SIMATIC OP177B 6" DPBLUE MODE STN DISPLAYTOUCH AND KEYSMPI-/PROFIBUS-DP PROTOCOLRS485-/RS422-/USB- INTERFACEPRINTER INTERFACESLOT FOR MM-CARDCONFIGURABLE WITHWINCC FLEXIBLE 2005*******************************THIS PRODUCT IS NO LONGERAVAILABLE FROM OCT. 1ST, 2014.INFORMATION ABOUT SUCCESSORSEE SIMATIC UPDATE ID: 62977695FOR FURTHER QUESTIONS PLEASEAPPROACH YOUR SIEMENSCONTACT PERSON. |
| 6AV6643-0AA01-1AX0 | SIMATIC TP 277 6"TOUCH PANEL5.7" TFT DISPLAY4 MB CONFIGURING MEMORY,CONFIGURABLE WITHWINCC FLEXIBLE 2005 STANDARD ORHIGHER*******************************THIS PRODUCT IS NO LONGERAVAILABLE FROM OCT. 1ST, 2014.INFORMATION ABOUT SUCCESSORSEE SIMATIC UPDATE ID: 62977695FOR FURTHER QUESTIONS PLEASEAPPROACH YOUR SIEMENSCONTACT PERSON. |
| 6AV6643-0BA01-1AX0 | SIMATIC OP 277 6"OPERATOR PANEL5.7" TFT DISPLAY4 MB CONFIGURING MEMORY,CONFIGURABLE WITHWINCC FLEXIBLE 2005STANDARD SP1 OR HIGHER*******************************THIS PRODUCT IS NO LONGERAVAILABLE FROM OCT. 1ST, 2014.INFORMATION ABOUT SUCCESSORSEE SIMATIC UPDATE ID: 62977695FOR FURTHER QUESTIONS PLEASEAPPROACH YOUR SIEMENSCONTACT PERSON. |
| 6AV6643-0CB01-1AX1 | SIMATIC MP 277 8" TOUCHMULTI PANEL W. RETENTIVE MEMORY7.5" TFT DISPLAY6 MB CONFIGURING MEMORY,CONFIGURABLE WITHWINCC FLEXIBLE 2005STANDARD SP1*******************************THIS PRODUCT IS NO LONGERAVAILABLE FROM OCT. 1ST, 2014.INFORMATION ABOUT SUCCESSORSEE SIMATIC UPDATE ID: 62977695FOR FURTHER QUESTIONS PLEASEAPPROACH YOUR SIEMENSCONTACT PERSON. |
| 6AV6643-0CD01-1AX1 | SIMATIC MP 277 10" TOUCHMULTI PANEL W. RETENTIVE MEMORY10,4" TFT DISPLAY6 MB USER MEMORYCONFIG:WINCC FLEXIBLE 2005STANDARD SP1*******************************THIS PRODUCT IS NO LONGERAVAILABLE FROM OCT. 1ST, 2014.INFORMATION ABOUT SUCCESSORSEE SIMATIC UPDATE ID: 62977695FOR FURTHER QUESTIONS PLEASEAPPROACH YOUR SIEMENSCONTACT PERSON. |
| 6AV6643-0DB01-1AX1 | SIMATIC MP 277 8" KEYMULTIPANEL, W. RETENTIVE MEMORY7,5" TFT DISPLAY,6 MB USER MEMORY,CONFIG. WITHWINCC FLEXIBLE 2005STANDARD SP1*******************************THIS PRODUCT IS NO LONGERAVAILABLE FROM OCT. 1ST, 2014.INFORMATION ABOUT SUCCESSORSEE SIMATIC UPDATE ID: 62977695FOR FURTHER QUESTIONS PLEASEAPPROACH YOUR SIEMENSCONTACT PERSON. |
| 6AV6643-0DD01-1AX1 | SIMATIC MP 277 10" KEYMULTIPANEL W. RETENTIVE MEMORY10,4" TFT DISPLAY6 MB USER MEMORYCONFIG.WINCC FLEXIBLE 2005STANDARD SP1*******************************THIS PRODUCT IS NO LONGERAVAILABLE FROM OCT. 1ST, 2014.INFORMATION ABOUT SUCCESSORSEE SIMATIC UPDATE ID: 62977695FOR FURTHER QUESTIONS PLEASEAPPROACH YOUR SIEMENSCONTACT PERSON. |
| 6AV6644-0AA01-2AX0 | SIMATIC MP 377 12" TOUCHMULTIPANEL, WINDOWS CE 5.012" COLOR-TFT-DISPLAY12 MB USER MEMORYCONFIGURABLE FROMWINCC FLEXIBLE 2007*******************************THIS PRODUCT IS NO LONGERAVAILABLE FROM OCT. 1ST, 2014.INFORMATION ABOUT SUCCESSORSEE SIMATIC UPDATE ID: 62977695FOR FURTHER QUESTIONS PLEASEAPPROACH YOUR SIEMENSCONTACT PERSON. |
| 6AV6644-0AB01-2AX0 | SIMATIC MP 377 15" TOUCHMULTIPANEL, WINDOWS CE 5.015" COLOR-TFT-DISPLAY12 MB USER MEMORYCONFIGURABLE FROMWINCC FLEXIBLE 2007*******************************THIS PRODUCT IS NO LONGERAVAILABLE FROM OCT. 1ST, 2014.INFORMATION ABOUT SUCCESSORSEE SIMATIC UPDATE ID: 62977695FOR FURTHER QUESTIONS PLEASEAPPROACH YOUR SIEMENSCONTACT PERSON. |
| 6AV6644-0AC01-2AX1 | SIMATIC MP 377 19" TOUCHMULTIPANEL, WINDOWS CE 5.019" COLOR-TFT-DISPLAY12 MB USER MEMORYCONFIGURABLE FROMWINCC FLEXIBLE 2007*******************************THIS PRODUCT IS NO LONGERAVAILABLE FROM OCT. 1ST, 2014.INFORMATION ABOUT SUCCESSORSEE SIMATIC UPDATE ID: 62977695FOR FURTHER QUESTIONS PLEASEAPPROACH YOUR SIEMENSCONTACT PERSON. |
| 6AV6644-0BA01-2AX1 | SIMATIC MP 377 12" KEYMULTIPANEL, WINDOWS CE 5.012" COLOR-TFT-DISPLAY12 MB USER MEMORYCONFIGURABLE FROMWINCC FLEXIBLE 2007NEW KEY ALUMINIUM FRONTWITH UNIFORM CLAMPS*******************************THIS PRODUCT IS NO LONGERAVAILABLE FROM OCT. 1ST, 2014.INFORMATION ABOUT SUCCESSORSEE SIMATIC UPDATE ID: 62977695FOR FURTHER QUESTIONS PLEASEAPPROACH YOUR SIEMENSCONTACT PERSON. |
| 6AV6644-2AB01-2AX0 | SIMATIC MP 377 PRO 15" TOUCHMULTIPANEL, WINDOWS CE 5.015" COLOR-TFT-DISPLAY12 MB USER MEMORYCONFIGURABLE FROMWINCC FLEXIBLE 2007 |
| 6AV6671-1CB00-0AX2 | SIMATIC HMI MEMORY CARD128 MB MULTI MEDIA CARD FOROP 77B, TP/OP 177B,TP/OP 277, C7-635,MP 177, MP 277, MP 377,MOBILE PANEL 177,MOBILE PANEL 277 ANDALL OTHER HMI PANELSWITH MM CARD SLOT |
WINCC FLEXIBLE
