Industrial PC

Industrial PC

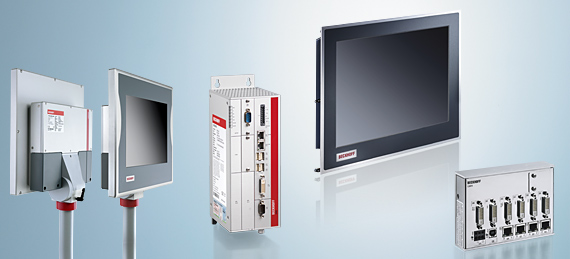

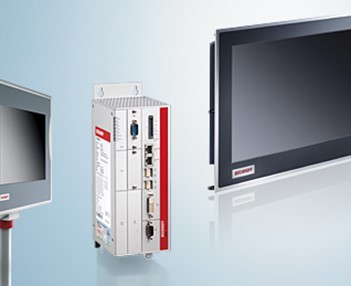

The Industrial PC (IPC) is the hardware centrepiece of PC based control technology

Price: Contact

Beckhoff supplies IPC suitable for any applications, which are based on open standards. There are two type of IPC as

  • Industrial PC: Control cabinet PC, Panel PC, Control Panel

  • Embedded PC

Part Number

Product group

Description

CP2212-0010

Industrial PC

Multi-touch built-in Panel PC CP22xx-0010, 12-inch display 800 x 600, Display only, multi-finger touch screen

CP2607-0000

Industrial PC

Dualtouch built-in Panel PC CP26xx-0000
with ARM Cortex™-A8, 7-inch display 800 x 480, Display only, dual-finger touch screen

CP2712-0000

Industrial PC

Fanless multi-touch built-in Panel PC CP27xx-0000, 12-inch display 800 x 600, Display only, multi-finger touch screen

CP3212-0010

Industrial PC

Multitouch Panel PC CP32xx-0010, 12-inch display 800 x 600, Display only, multi-finger touch screen

CP6207-0000-0020

Industrial PC

“Economy” built-in Panel PC CP62xx-xxxx-0020, 5.7-inch display 640 x 480, without keys, without hard disk slot, max. 1 CF slot

CP6201-0000-0060

Industrial PC

“Economy” built-in Panel PC CP62xx-xxxx-0060, 12-inch display 800 x 600, without keys

CP6501-0000-0080

Industrial PC

Built-in Panel PC CP65xx-xxxx-0080, 12-inch display 800 x 600, without keys

CP6607-0000-0020

Industrial PC

Built-in Panel PC CP66xx-xxxx-0020 with ARM Cortex™-A8, 5.7-inch display 640 x 480, without keys

CP6707-0000-0040

Industrial PC

“Economy” built-in Panel PC CP67xx-xxxx-0040, 5.7-inch display 640 x 480, without keys

CP7201-0000-0050

Industrial PC

“Economy” Panel PC CP72xx-xxxx-0050, 12-inch display 800 x 600, without keys

CP7709-0000-0020

Industrial PC

Panel PC CP77xx-xxxx-0020, 6.5-inch display 640 x 480,, without keys

C3320-0060

Industrial PC

19-inch Panel PC C3320-0060, 12-inch TFT display, resolution 800 x 600

C3330-0060

Industrial PC

19-inch Panel PC C3330-0060, 12-inch TFT display, resolution 800 x 600

C3340-0060

Industrial PC

19-inch Panel PC C3340-0060, 15-inch TFT display, resolution 1024 x 768

C3350-0060

Industrial PC

19-inch Panel PC C3350-0060, 15-inch TFT display, resolution 1024 x 768

C3620-0060

Industrial PC

Panel PC C3620-0060, 12-inch TFT display, resolution 800 x 600

C3640-0060

Industrial PC

Panel PC C3640-0060, 15-inch TFT display, resolution 1024 x 768

C5102-0060

Industrial PC

19-inch slide-in Industrial PC C5102-0060

C5210-0020

Industrial PC

19-inch slide-in industrial PC C5210-0020

C6140-0060

Industrial PC

Control cabinet Industrial PC C6140-0060

C6150-0060

Industrial PC

Control cabinet Industrial PC C6150-0060

C6240-0060

Industrial PC

Control cabinet Industrial PC C6240-0060

C6250-0070

Industrial PC

Control cabinet Industrial PC C6250-0070

C6515-0050

Industrial PC

Fanless built-in Industrial PC C6515-0050

C6525-0050

Industrial PC

Fanless built-in Industrial PC C6525-0050

C6640-0040

Industrial PC

Control cabinet Industrial PC C6640-0040

C6650-0040

Industrial PC

Control cabinet Industrial PC C6650-0040

C6915-0000

Industrial PC

Fanless control cabinet Industrial PC C6915-0000

C6920-0050

Industrial PC

Control cabinet Industrial PC C6920-0050

C6925-0010

Industrial PC

Fanless control cabinet Industrial PC C6925-0010

C6930-0050

Industrial PC

Control cabinet Industrial PC C6930-0050

CP2907-0000

Industrial PC

Multi-touch built-in Control Panel CP29xx-0000
with DVI/USB Extended interface, 7-inch display 800 x 480, Display only, multi-finger touch screen

CP3907-0000

Industrial PC

Multi-touch Control Panel CP39xx-0000 with DVI/USB Extended interface, 7-inch display 800 x 480, Display only, multi-finger touch screen

CP6009-0000-0000

Industrial PC

Built-in Control Panel CP60xx with CP-Link interface, 6.5-inch display 640 x 480, without keys

CP6809-0000-0000

Industrial PC

Built-in Control Panel CP68xx with DVI/USB interface, 6.5-inch display 640 x 480, without keys

CP6907-0000-0000

Industrial PC

“Economy” built-in Control Panel CP69xx
with DVI/USB Extended interface, 5.7-inch display 640 x 480, without keys

CP7009-0000-0000

Industrial PC

Control Panel CP70xx with CP-Link interface, 6.5-inch display 640 x 480, without keys

CP7809-0000-0000

Industrial PC

Control Panel CP78xx with DVI/USB interface, 6.5-inch display 640 x 480, without keys

CP7909-0000-0000

Industrial PC

“Economy” Control Panel CP79xx with DVI/USB Extended interface, 6.5-inch display 640 x 480, without keys

CX8010

Embedded PC

DIN rail Industrial PC
– 32 bit, 400 MHz CPU
– 512 MB microSD flash memory (optionally 1 GB, 2 GB or 4 GB)
– 64 MB internal main memory
– protocol: EtherCAT (slave)
– operating system: Microsoft Windows CE 6
– programming: TwinCAT 2 PLC
– interfaces: 1 x Ethernet 10/100 Mbit/s (RJ 45), 1 x USB device (behind the front flap)
– bus interface: EtherCAT IN and OUT (2 x RJ 45)
– I/O connection: E-bus (EtherCAT Terminals) or K-bus (Bus Terminals), automatic detection
– clock: internal battery-backed clock for time and date (battery behind the front flap, exchangeable)
– UPS: 1-second UPS
– protection class: IP 20
– dimensions (W x H x D) 65 x 100 x 80 mm

CX8030

Embedded PC

DIN rail Industrial PC
– 32 bit, 400 MHz CPU (TC3: 20)
– 512 MB microSD flash memory (optionally 1 GB, 2 GB or 4 GB)
– 64 MB internal main memory
– protocol: PROFIBUS master
– operating system: Microsoft Windows CE 6
– programming: TwinCAT 2 PLC
– interfaces: 1 x Ethernet 10/100 Mbit/s (RJ 45), 1 x USB device (behind the front flap)
– bus interface: 1 x PROFIBUS (D-sub RS485, 9-pin socket with shielding)
– I/O connection: E-bus (EtherCAT Terminals) or K-bus (Bus Terminals), automatic detection
– clock: internal battery-backed clock for time and date (battery behind the front flap, exchangeable)
– UPS: 1-second UPS
– protection class: IP 20
– dimensions (W x H x D) 65 x 100 x 80 mm

CX8031

Embedded PC

DIN rail Industrial PC
– 32 bit, 400 MHz CPU
– 512 MB microSD flash memory (optionally 1 GB, 2 GB or 4 GB)
– 64 MB internal main memory
– protocol: PROFIBUS slave
– operating system: Microsoft Windows CE 6
– programming: TwinCAT 2 PLC
– interfaces: 1 x Ethernet 10/100 Mbit/s (RJ 45), 1 x USB device (behind the front flap)
– bus interface: 1 x PROFIBUS (D-sub RS485, 9-pin socket with shielding)
– I/O connection: E-bus (EtherCAT Terminals) or K-bus (Bus Terminals), automatic detection
– clock: internal battery-backed clock for time and date (battery behind the front flap, exchangeable)
– UPS: 1-second UPS
– protection class: IP 20
– dimensions (W x H x D) 65 x 100 x 80 mm

CX8050

Embedded PC

DIN rail Industrial PC
– 32 bit, 400 MHz CPU
– 512 MB microSD flash memory (optionally 1 GB, 2 GB or 4 GB)
– 64 MB internal main memory
– protocol: CANopen master, CAN Layer 2 Kommunikation
– operating system: Microsoft Windows CE 6
– programming: TwinCAT 2 PLC
– interfaces: 1 x Ethernet 10/100 Mbit/s (RJ 45), 1 x USB device (behind the front flap)
– bus interface: D-sub connector, 9-pin according to CANopen specification, galvanically decoupled
– I/O connection: E-bus (EtherCAT Terminals) or K-bus (Bus Terminals), automatic detection
– clock: internal battery-backed clock for time and date (battery behind the front flap, exchangeable)
– UPS: 1-second UPS
– protection class: IP 20
– dimensions (W x H x D) 65 x 100 x 80 mm

CX8051

Embedded PC

DIN rail Industrial PC
– 32 bit, 400 MHz CPU
– 512 MB microSD flash memory (optionally 1 GB, 2 GB or 4 GB)
– 64 MB internal main memory
– protocol: CANopen slave
– operating system: Microsoft Windows CE 6
– programming: TwinCAT 2 PLC
– interfaces: 1 x Ethernet 10/100 Mbit/s (RJ 45), 1 x USB device (behind the front flap)
– bus interface: D-sub connector, 9-pin according to CANopen specification, galvanically decoupled
– I/O connection: E-bus (EtherCAT Terminals) or K-bus (Bus Terminals), automatic detection
– clock: internal battery-backed clock for time and date (battery behind the front flap, exchangeable)
– UPS: 1-second UPS
– protection class: IP 20
– dimensions (W x H x D) 65 x 100 x 80 mm

CX8080

Embedded PC

DIN rail Industrial PC
– 32 bit, 400 MHz CPU
– 512 MB microSD flash memory (optionally 1 GB, 2 GB or 4 GB)
– 64 MB internal main memory
– protocol: serial communication RS232/RS485
– operating system: Microsoft Windows CE 6
– programming: TwinCAT 2 PLC
– interfaces: 1 x Ethernet 10/100 Mbit/s (RJ 45), 1 x USB device (behind the front flap)
– bus interface: D-sub connector, 9-pin, RS232/RS485
– I/O connection: E-bus (EtherCAT Terminals) or K-bus (Bus Terminals), automatic detection
– clock: internal battery-backed clock for time and date (battery behind the front flap, exchangeable)
– UPS: 1-second UPS
– protection class: IP 20
– dimensions (W x H x D) 65 x 100 x 80 mm

CX8090

Embedded PC

DIN rail Industrial PC
– 32 bit, 400 MHz CPU
– 512 MB microSD flash memory (optionally 1 GB, 2 GB or 4 GB)
– 64 MB internal main memory
– protocol: real-time Ethernet, ADS UDP, ADS TCP, ModbusTCP, TCP/IP, UDP/IP, EAP (EtherCAT Automation Protocol)
– operating system: Microsoft Windows CE 6
– programming: TwinCAT 2 PLC
– interfaces: 1 x Ethernet 10/100 Mbit/s (RJ 45), 1 x USB device (behind the front flap)
– bus interface: 2 x Ethernet RJ 45 (switched)
– I/O connection: E-bus (EtherCAT Terminals) or K-bus (Bus Terminals), automatic detection
– clock: internal battery-backed clock for time and date (battery behind the front flap, exchangeable)
– UPS: 1-second UPS
– protection class: IP 20
– dimensions (W x H x D) 65 x 100 x 80 mm

CX8091

Embedded PC

DIN rail Industrial PC
– 32 bit, 400 MHz CPU
– 512 MB microSD flash memory (optionally 1 GB, 2 GB or 4 GB)
– 64 MB internal main memory
– protocol: BACnet/IP or OPC UA
– operating system: Microsoft Windows CE 6
– programming: TwinCAT 2 PLC
– interfaces: 1 x Ethernet 10/100 Mbit/s (RJ 45), 1 x USB device (behind the front flap)
– bus interface: 2 x Ethernet RJ 45 (switched)
– I/O connection: E-bus (EtherCAT Terminals) or K-bus (Bus Terminals), automatic detection
– clock: internal battery-backed clock for time and date (battery behind the front flap, exchangeable)
– UPS: 1-second UPS
– protection class: IP 20
– dimensions (W x H x D) 65 x 100 x 80 mm

CX8093

Embedded PC

DIN rail Industrial PC
– 32 bit, 400 MHz CPU
– 512 MB microSD flash memory (optionally 1 GB, 2 GB or 4 GB)
– 64 MB internal main memory
– protocol: PROFINET RT device
– operating system: Microsoft Windows CE 6
– programming: TwinCAT 2 PLC
– interfaces: 1 x Ethernet 10/100 Mbit/s (RJ 45), 1 x USB device (behind the front flap)
– bus interface: 2 x Ethernet RJ 45 (switched)
– I/O connection: E-bus (EtherCAT Terminals) or K-bus (Bus Terminals), automatic detection
– clock: internal battery-backed clock for time and date (battery behind the front flap, exchangeable)
– UPS: 1-second UPS
– protection class: IP 20
– dimensions (W x H x D) 65 x 100 x 80 mm

CX8095

Embedded PC

DIN rail Industrial PC
– 32 bit, 400 MHz CPU
– 512 MB microSD flash memory (optionally 1 GB, 2 GB or 4 GB)
– 64 MB internal main memory
– protocol: EtherNet/IP (slave)
– operating system: Microsoft Windows CE 6
– programming: TwinCAT 2 PLC
– interfaces: 1 x Ethernet 10/100 Mbit/s (RJ 45), 1 x USB device (behind the front flap)
– bus interface: 2 x Ethernet RJ 45 (switched)
– I/O connection: E-bus (EtherCAT Terminals) or K-bus (Bus Terminals), automatic detection
– clock: internal battery-backed clock for time and date (battery behind the front flap, exchangeable)
– UPS: 1-second UPS
– protection class: IP 20
– dimensions (W x H x D) 65 x 100 x 80 mm

CX8097

Embedded PC

DIN rail Industrial PC
– 32 bit, 400 MHz CPU
– 512 MB microSD flash memory (optionally 1 GB, 2 GB or 4 GB)
– 64 MB internal main memory
– protocol: SERCOS III I/O profil
– operating system: Microsoft Windows CE 6
– programming: TwinCAT 2 PLC
– interfaces: 1 x Ethernet 10/100 Mbit/s (RJ 45), 1 x USB device (behind the front flap)
– bus interface: 2 x Ethernet RJ 45 (switched)
– I/O connection: E-bus (EtherCAT Terminals) or K-bus (Bus Terminals), automatic detection
– clock: internal battery-backed clock for time and date (battery behind the front flap, exchangeable)
– UPS: 1-second UPS
– protection class: IP 20
– dimensions (W x H x D) 65 x 100 x 80 mm

CX9020-0110

Embedded PC

Basic CPU module CX9020, no TwinCAT

CX9020-0111

Embedded PC

Basic CPU module CX9020, TwinCAT 2 PLC run-time

CX9020-0112

Embedded PC

Basic CPU module CX9020, TwinCAT 2 PLC run-time, TwinCAT 2 NC run-time

CX5010-0120

Embedded PC

Basic CPU module CX5010, E-bus, Windows Embedded Standard, no TwinCAT

CX5010-0121

Embedded PC

Basic CPU module CX5010, E-bus, Windows Embedded Standard, TwinCAT 2 PLC run-time

CX5010-0122

Embedded PC

CX5010-1120

Embedded PC

Basic CPU module CX5010, K-bus, Windows Embedded Standard, no TwinCAT

CX5010-1121

Embedded PC

Basic CPU module CX5010, K-bus, Windows Embedded Standard, TwinCAT 2 PLC run-time

CX5010-1122

Embedded PC

CX5020-0120

Embedded PC

Basic CPU module CX5020, E-bus, Windows Embedded Standard, no TwinCAT

CX5020-0121

Embedded PC

Basic CPU module CX5020, E-bus, Windows Embedded Standard, TwinCAT 2 PLC run-time

CX5020-0122

Embedded PC

CX5020-1120

Embedded PC

Basic CPU module CX5020, K-bus, Windows Embedded Standard, no TwinCAT

CX5020-1121

Embedded PC

Basic CPU module CX5020, K-bus, Windows Embedded Standard, TwinCAT 2 PLC run-time

CX5020-1122

Embedded PC

CX5120-0120

Embedded PC

Basic CPU module CX5120, Windows Embedded Standard 7 P, 32 bit, no TwinCAT

CX5120-0121

Embedded PC

Basic CPU module CX5120, Windows Embedded Standard 7 P, 32 bit, TwinCAT 2 PLC run-time

CX5120-0122

Embedded PC

CX5120-0123

Embedded PC

CX5120-0130

Embedded PC

Basic CPU module CX5120, Windows Embedded Standard 7 P, 64 bit, no TwinCAT

CX5130-0120

Embedded PC

Basic CPU module CX5130, Windows Embedded Standard 7 P, 32 bit, no TwinCAT

CX5130-0121

Embedded PC

Basic CPU module CX5130, Windows Embedded Standard 7 P, 32 bit, TwinCAT 2 PLC run-time

CX5130-0122

Embedded PC

CX5130-0123

Embedded PC

CX5130-0130

Embedded PC

Basic CPU module CX5130, Windows Embedded Standard 7 P, 64 bit, no TwinCAT

CX5140-0120

Embedded PC

Basic CPU module CX5140, Windows Embedded Standard 7 P, 32 bit, no TwinCAT

CX5140-0121

Embedded PC

Basic CPU module CX5140, Windows Embedded Standard 7 P, 32 bit, TwinCAT 2 PLC run-time

CX5140-0122

Embedded PC

CX5140-0123

Embedded PC

CX5140-0130

Embedded PC

Basic CPU module CX5140, Windows Embedded Standard 7 P, 64 bit, no TwinCAT

CX2020-0120

Embedded PC

Basic CPU module CX2020, Windows Embedded Standard 7 P 32 bit, no TwinCAT

CX2020-0121

Embedded PC

Basic CPU module CX2020, Windows Embedded Standard 7 P 32 bit, TwinCAT 2 PLC run-time

CX2020-0122

Embedded PC

CX2020-0123

Embedded PC

CX2020-0130

Embedded PC

Basic CPU module CX2020, Windows Embedded Standard 7 P 64 bit, no TwinCAT

CX2030-0120

Embedded PC

Basic CPU module CX2030, Windows Embedded Standard 7 P 32 bit, no TwinCAT

CX2030-0121

Embedded PC

Basic CPU module CX2030, Windows Embedded Standard 7 P 32 bit, TwinCAT 2 PLC run-time

CX2030-0122

Embedded PC

CX2030-0123

Embedded PC

CX2030-0130

Embedded PC

Basic CPU module CX2030, Windows Embedded Standard 7 P 64 bit, no TwinCAT

CX2040-0120

Embedded PC

Basic CPU module CX2040, Windows Embedded Standard 7 P 32 bit, no TwinCAT

CX2040-0121

Embedded PC

Basic CPU module CX2040, Windows Embedded Standard 7 P 32 bit, TwinCAT 2 PLC run-time

CX2040-0122

Embedded PC

CX2040-0123

Embedded PC

CX2040-0130

Embedded PC

Basic CPU module CX2040, Windows Embedded Standard 7 P 64 bit, no TwinCAT

TwinCAT 2

TwinCAT 3

Food Industry

Energy Industry

Industrial Refrigeration Control

Building Automation Solutions

Copyright © 2012 - 2015 Microtech Industrial Automation Co., Ltd. All Rights Reserved.
